John Deere CR125 Ride On Mower Parts and Spares

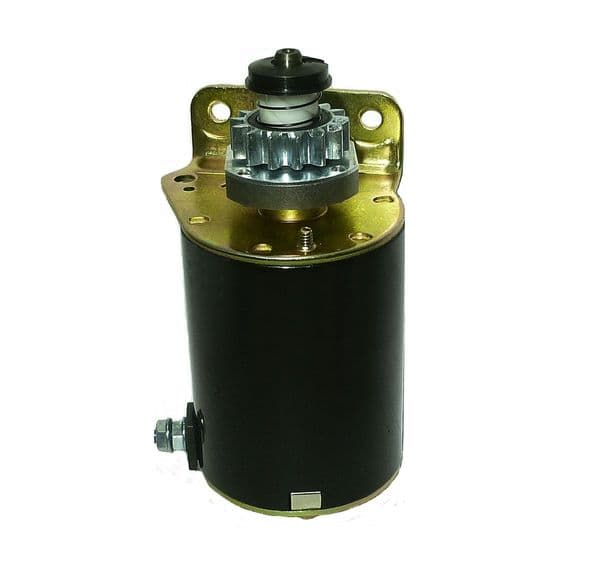

1 x Brand New Best Quality Aftermarket Replacement Electric Starter Motor Part for John Deere CR125, LR135, LR155, LR175 Ride On Tractor Mowers with Briggs and Stratton 12.5hp, 13.5hp, 15.5hp, 17.5hp Engines.
TO BE FITTED ONLY TO ENGINES WITH STEEL FLYWHEEL RING GEARS ONLY, NOT FOR ALUMINIUM FLYWHEEL RING GEARS, MAKE SURE YOU CHECK BEFORE ORDERING !
Dimensions and Specifications:
Voltage: 12 Volt.
Pinion gear material type: STEEL.
Number of teeth on pinion gear : 14.
Rotation when in operation: Counter Clockwise / Anti Clockwise.
Starter motor length from end to end: 170mm.
Starter Motor Black Body Length: 96mm.
Width at the the center black body: 79mm.
Number of mounting holes: 2.
Mounting holes, distance between centres: 58mm.
TO BE FITTED ONLY TO ENGINES WITH STEEL FLYWHEEL RING GEARS ONLY, NOT FOR ALUMINIUM FLYWHEEL RING GEARS, MAKE SURE YOU CHECK BEFORE ORDERING !
Dimensions and Specifications:
Voltage: 12 Volt.
Pinion gear material type: STEEL.
Number of teeth on pinion gear : 14.
Rotation when in operation: Counter Clockwise / Anti Clockwise.
Starter motor length from end to end: 170mm.
Starter Motor Black Body Length: 96mm.
Width at the the center black body: 79mm.
Number of mounting holes: 2.
Mounting holes, distance between centres: 58mm.
-
MPN:STMT001
-
Brand:Replacement Part
-
Condition:New
-
Product Code:22-001-W3
-
Weight:2kg
