Husqvarna 254 Chainsaw Parts and Spares
-1286-p.jpg?v=d068775e-343a-4341-b67c-51242fbd48d2)

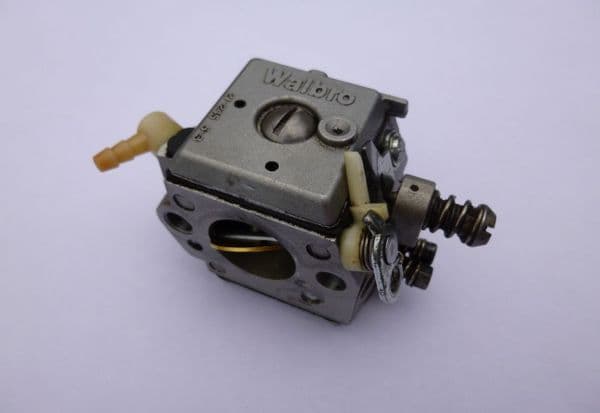

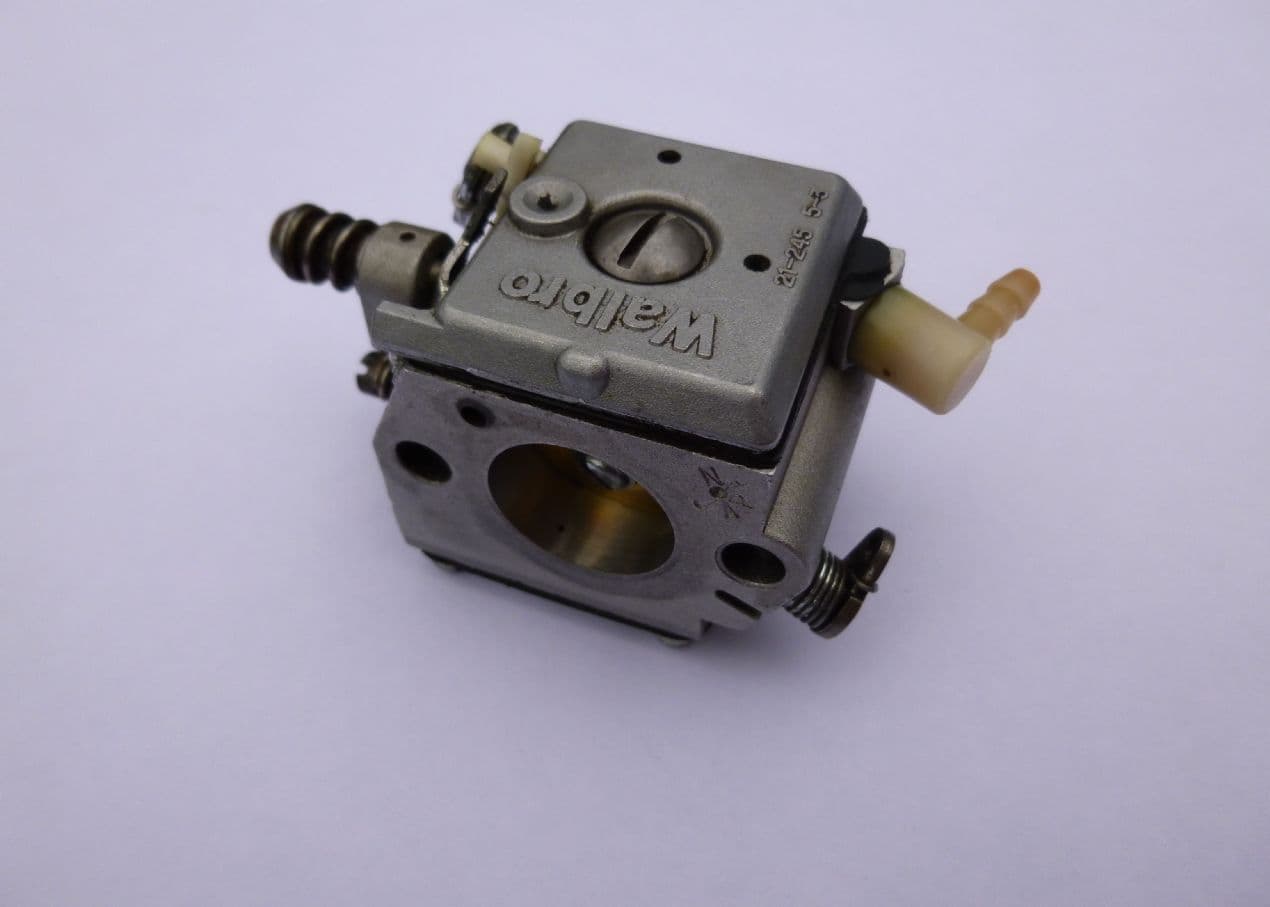

Husqvarna Genuine Part. Carburettor Carb Assembly Complete.
Husqvarna Part no's: 503 28 10-11, 503 53 27-01, 503 17 36-01, 501 87 88-01, 501 87 55-01.
Walbro HDA-35B, HDA-35.
For Husqvarna Chainsaw Models:
154, 154SE, 154SG, 154XP (All Serials).
254, 254G, 254SE, 254SG, 254XP, 254XPG (All Serials ).
257, 257XPG, 257XPG (All Serials) Note- although this model usually has Walbro HDA-120 Carburettor Part no: 503 28 16-05 it is fully interchangable with the HDA-35B as stated in the following Service Bulletin,
262, 262G, 262XP, 262XPG (All Serials) - Note- Although this model usually has the Walbro HDA-120 Carburettor Part no: 503 28 16-05 or Walbro HDA-87 Part no 503 28 10-18 it is fully interchangable with the HDA-35B as stated in the following Service bulletin.
http://www.mymowerparts.com/pdf/Husqvarna-Service-Bulletins/B0101047.pdf
This Carburettor is also Husqvarna's stated replacement for Chainsaw Models 44 and 444 with Walbro Carburettors HDA-24 Part no 501 79 80-01, HDC-51 Part no 501 45 67-04 and HDC-51B Part no 501 45 67-05. But you will need to read the following Service bulletin X 88.126-26 to help with the installation on some models.
Here is the link:
http://www.mymowerparts.com/pdf/Husqvarna-Service-Bulletins/B8800007.pdf
Will also fit Husqvarna 340SE and 340SG Chainsaw Models but you will have to adhere to the same service bulletin guidlines as for the above 44, 444 models.
Is this part new or used? A. Used.
Has this part been fully technically checked and tested for faults? A. Yes.
Test Results: Excellent Condition and in perfect working order. This Carburettor was removed from a fully functional chainsaw after being properly tested for running faults through all throttle positions. The Part has also been cleaned to save you the time.
Husqvarna Part no's: 503 28 10-11, 503 53 27-01, 503 17 36-01, 501 87 88-01, 501 87 55-01.
Walbro HDA-35B, HDA-35.
For Husqvarna Chainsaw Models:
154, 154SE, 154SG, 154XP (All Serials).
254, 254G, 254SE, 254SG, 254XP, 254XPG (All Serials ).
257, 257XPG, 257XPG (All Serials) Note- although this model usually has Walbro HDA-120 Carburettor Part no: 503 28 16-05 it is fully interchangable with the HDA-35B as stated in the following Service Bulletin,
262, 262G, 262XP, 262XPG (All Serials) - Note- Although this model usually has the Walbro HDA-120 Carburettor Part no: 503 28 16-05 or Walbro HDA-87 Part no 503 28 10-18 it is fully interchangable with the HDA-35B as stated in the following Service bulletin.
http://www.mymowerparts.com/pdf/Husqvarna-Service-Bulletins/B0101047.pdf
This Carburettor is also Husqvarna's stated replacement for Chainsaw Models 44 and 444 with Walbro Carburettors HDA-24 Part no 501 79 80-01, HDC-51 Part no 501 45 67-04 and HDC-51B Part no 501 45 67-05. But you will need to read the following Service bulletin X 88.126-26 to help with the installation on some models.
Here is the link:
http://www.mymowerparts.com/pdf/Husqvarna-Service-Bulletins/B8800007.pdf
Will also fit Husqvarna 340SE and 340SG Chainsaw Models but you will have to adhere to the same service bulletin guidlines as for the above 44, 444 models.
Is this part new or used? A. Used.
Has this part been fully technically checked and tested for faults? A. Yes.
Test Results: Excellent Condition and in perfect working order. This Carburettor was removed from a fully functional chainsaw after being properly tested for running faults through all throttle positions. The Part has also been cleaned to save you the time.
-
MPN:503 28 10-11
-
Brand:Husqvarna
-
Condition:Used
-
Weight:0.2kg
