Honda HF2315 Ride On Tractor Mower Parts

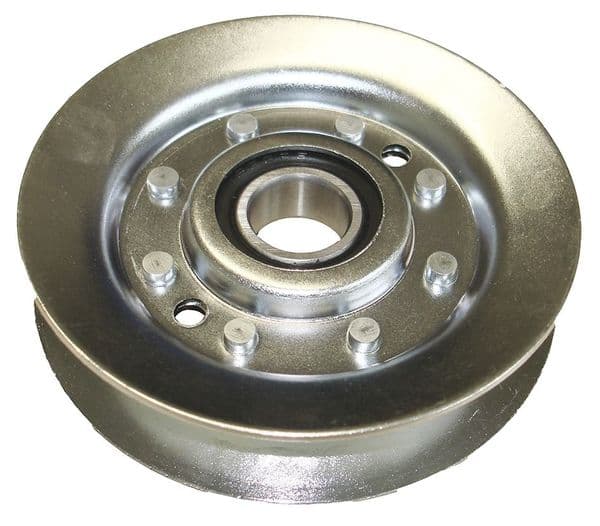

1 x High Quality Aftermarket Replacement Transmission / Cutting Deck Idler Pulley Part for Honda HF2315, HF2415, HF2417, HF2620 Ride On Tractor Mowers.
Fits the following models and fitted in the area's stated below:
HF2315 Fits all variants and serials including : HME, HME/A, SBE, SBE/A,
HF2315 K1 Fits all variants and serials including : HME, HMF, SBE, SBF,
HF2415 Fits all variants and serials including : SBE, SBE/A.
HF2417 Fits all variants and serials including : HME, HME/A, HTE, HTE/A,
HF2417 K1 Fits all variants and serials including : HME, HTE,
HF2417 K2 Fits all variants and serials including : HME, HMF, HTE, HTF,
HF2620 Fits all variants and serials including : HME, HME/A, HTE, HTE/A,
HF2620 K1 Fits all variants and serials including : HME, HMF, HTE, HTF.
REPLACES HONDA PART NO: 80256-Y09-003.
IMPORTANT NOTE 1: ON ALL THE ABOVE MODELS THIS PULLEY IS USED IN TWO PLACES. ONE IS USED AS A STATIC PULLEY IN THE MIDDLE OF THE DRIVE TRANSMISSION TRAIN AND ONE IS FITTED ON TOP OF THE CUTTING DECK AND IS USED AS AN IDLER PULLEY THAT IS ON A SWINGING PIVOT USED TO ENGAGE THE BLADES.
IMPORTANT NOTE 2: REMEMBER THERE ARE SEVERAL PULLEYS ON THESE MACHINES AND THIS ONE IS METAL NOT THE PLASTIC TYPE THAT IS ALSO USED IN PLACES ON THESE MACHINES.
Dimensons:
Width: 90mm
Thickness: 20mm
Material Type: Metal with bearing built into centre.
Fits the following models and fitted in the area's stated below:
HF2315 Fits all variants and serials including : HME, HME/A, SBE, SBE/A,
HF2315 K1 Fits all variants and serials including : HME, HMF, SBE, SBF,
HF2415 Fits all variants and serials including : SBE, SBE/A.
HF2417 Fits all variants and serials including : HME, HME/A, HTE, HTE/A,
HF2417 K1 Fits all variants and serials including : HME, HTE,
HF2417 K2 Fits all variants and serials including : HME, HMF, HTE, HTF,
HF2620 Fits all variants and serials including : HME, HME/A, HTE, HTE/A,
HF2620 K1 Fits all variants and serials including : HME, HMF, HTE, HTF.
REPLACES HONDA PART NO: 80256-Y09-003.
IMPORTANT NOTE 1: ON ALL THE ABOVE MODELS THIS PULLEY IS USED IN TWO PLACES. ONE IS USED AS A STATIC PULLEY IN THE MIDDLE OF THE DRIVE TRANSMISSION TRAIN AND ONE IS FITTED ON TOP OF THE CUTTING DECK AND IS USED AS AN IDLER PULLEY THAT IS ON A SWINGING PIVOT USED TO ENGAGE THE BLADES.
IMPORTANT NOTE 2: REMEMBER THERE ARE SEVERAL PULLEYS ON THESE MACHINES AND THIS ONE IS METAL NOT THE PLASTIC TYPE THAT IS ALSO USED IN PLACES ON THESE MACHINES.
Dimensons:
Width: 90mm
Thickness: 20mm
Material Type: Metal with bearing built into centre.
-
MPN:80256-Y09-003
-
Brand:Replacement Part
-
Condition:New
-
Product Code:5-014-W3
-
Weight:0.2kg
