Honda HF2213 Ride on Mower Cutting Deck Parts, Blades, Blade Boss's, Pulleys, Spindles, Deck Wheels

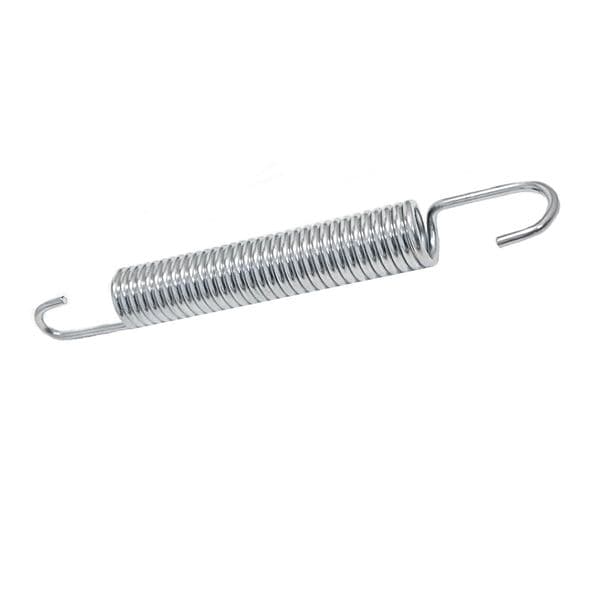

1 x Brand New Genuine Honda Part. Ride On Tractor Mower Cutting deck Brake Return / Tension Spring for
some Honda HF1211, HF2213, HF2218, HF2415, HF2417, HF2620 Ride On Mowers.
This part is situated on the top of the cutting deck and is used to keep tension on the blade brake arm plate which in turn stops the top pulleys from rotating so stopping the blades spinning when cutting is complete.
PLEASE NOTE: CHECK BELOW WITH YOUR SERIAL NUMBER TO MAKE SURE THIS IS THE CORRECT PART FOR YOU.
This Spring is fitted to the following models and serial numbers.
HF1211 HE and HF1211 SE with serial numbers on or inbetween the following: MAHF 8000001 to MAHF8199999 AND ALSO ON OR BETWEEN MAHF 8800001 TO MAHF 8999999.
HF1211 K1 HE and HF 1211 K1 SE with serial numbers on or inbetween the following: MAHF 8200001 to MAHF 8299999.
HF2213 SF, HF2213 K1 SF, HF2213 K2 H, HF2213 K2 S, HF2213 K3 HE ( FITTED TO ALL SERIAL NUMBERS OF THE HF2213 ).
HF2218 K1 SE only fitted to the following serial numbers on or inbetween MCG3 8700001 TO MCG3 8999999.
HF2415 SBE ( FITTED ON ALL SERIAL NUMBERS OF THE HF2415 ).
HF2417 HME, HF2417 HTE with serial numbers on or inbetween the following: MAPF 8400001 to MAPF 8799999.
HF2417 K1 HME, HF2417 K1 HTE with serial numbers on or inbetween the following: MAPF 8800001 to MAPF 8899999.
HF2620 HME, HF2620 HTE, HF2620 K1 HME, HF2620 K1 HMF, HF2620 K1 HTE, HF2620 K1 HTF ( FITTED TO ALL SERIALS NUMBERS OF THE HF2620 ).
Dimensions:
Total Spring Length: 113mm.
Spring Width: 13.6mm.
FREE DELIVERY WITHIN THE UK !
some Honda HF1211, HF2213, HF2218, HF2415, HF2417, HF2620 Ride On Mowers.
This part is situated on the top of the cutting deck and is used to keep tension on the blade brake arm plate which in turn stops the top pulleys from rotating so stopping the blades spinning when cutting is complete.
PLEASE NOTE: CHECK BELOW WITH YOUR SERIAL NUMBER TO MAKE SURE THIS IS THE CORRECT PART FOR YOU.
This Spring is fitted to the following models and serial numbers.
HF1211 HE and HF1211 SE with serial numbers on or inbetween the following: MAHF 8000001 to MAHF8199999 AND ALSO ON OR BETWEEN MAHF 8800001 TO MAHF 8999999.
HF1211 K1 HE and HF 1211 K1 SE with serial numbers on or inbetween the following: MAHF 8200001 to MAHF 8299999.
HF2213 SF, HF2213 K1 SF, HF2213 K2 H, HF2213 K2 S, HF2213 K3 HE ( FITTED TO ALL SERIAL NUMBERS OF THE HF2213 ).
HF2218 K1 SE only fitted to the following serial numbers on or inbetween MCG3 8700001 TO MCG3 8999999.
HF2415 SBE ( FITTED ON ALL SERIAL NUMBERS OF THE HF2415 ).
HF2417 HME, HF2417 HTE with serial numbers on or inbetween the following: MAPF 8400001 to MAPF 8799999.
HF2417 K1 HME, HF2417 K1 HTE with serial numbers on or inbetween the following: MAPF 8800001 to MAPF 8899999.
HF2620 HME, HF2620 HTE, HF2620 K1 HME, HF2620 K1 HMF, HF2620 K1 HTE, HF2620 K1 HTF ( FITTED TO ALL SERIALS NUMBERS OF THE HF2620 ).
Dimensions:
Total Spring Length: 113mm.
Spring Width: 13.6mm.
FREE DELIVERY WITHIN THE UK !
-
MPN:80317-VK1-003
-
Brand:Honda
-
Condition:New
-
Product Code:5-020-G-W1
-
Weight:0.1kg
