Tecumseh Carburettor Parts

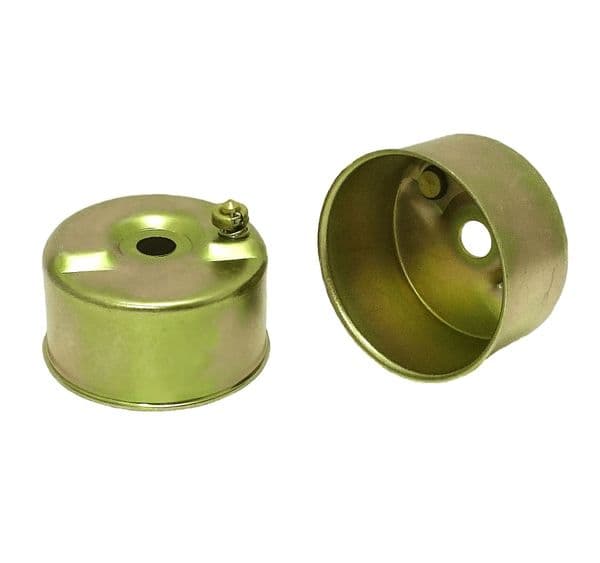

Carburettor Float Bowl, Tecumseh Tecnamotor Engine Part 13950001
Carburettor Float Bowl, Tecumseh Tecnamotor Engine Part 13950001
You will earn 10 points with this purchase
DON''T MISS OUT, FREE DELIVERY ON ALL UK ORDERS !
Part 13950001, Fits Centura, MV100S, Prisma, Spectra, Synergy, Vantage, BH35, BH37, BH45, BH55, BV153, BVS143, BVS153, HTL40, LV156, Tecumseh / Tecnamotor Engines,
1 x Brand New Top Quality Aftermarket Replacement Carburettor Float Bowl for Tecumseh Engines,
Replacement for Tecumseh Part No: 13950001.
This is the type with a sprung fuel drain port incorporated into the base on one side which you simply push up to drain old fuel or water from the bowl when in situ.
Fits Many Tecumseh / Tecnamotor Engines including BH35, BH37, BH45, BH55, BH65, BV153, BVS143, BVS153, Centura, GeoTec, GNR E-63, HTL40, LV156, MV100S, Prisma 37, Prisma 57, Spectra 38, Spectra 40, Spectra 48, Spectra 58, Synergy 38, Synergy 40, Synergy 45, Synergy 50, Synergy 55, Vantage 35, Vantage 36, Vantage 40,
Dimensions:
Outer Diameter of Top Rim: 50.7mm,
Outer Diameter of Bowl Section: 48.2mm to 48.4mm,
Inside Diameter of Bowl: 47mm,
Bowl Height Not Including Drain Pin: 27.2mm,
Bowl Height Including Drain Pin: 35mm,
Bowl Nut Hole Diameter: 8.5mm,
HELPFUL HINT: IF YOU ALSO REQUIRE THE LARGE UPPER FLOAT BOWL SEAL TO FIT THIS THEN PLEASE CLICK BELOW !
CLICK HERE FOR LARGE UPPER BOWL SEAL !
1 x Brand New Top Quality Aftermarket Replacement Carburettor Float Bowl for Tecumseh Engines,
Replacement for Tecumseh Part No: 13950001.
This is the type with a sprung fuel drain port incorporated into the base on one side which you simply push up to drain old fuel or water from the bowl when in situ.
Fits Many Tecumseh / Tecnamotor Engines including BH35, BH37, BH45, BH55, BH65, BV153, BVS143, BVS153, Centura, GeoTec, GNR E-63, HTL40, LV156, MV100S, Prisma 37, Prisma 57, Spectra 38, Spectra 40, Spectra 48, Spectra 58, Synergy 38, Synergy 40, Synergy 45, Synergy 50, Synergy 55, Vantage 35, Vantage 36, Vantage 40,
Dimensions:
Outer Diameter of Top Rim: 50.7mm,
Outer Diameter of Bowl Section: 48.2mm to 48.4mm,
Inside Diameter of Bowl: 47mm,
Bowl Height Not Including Drain Pin: 27.2mm,
Bowl Height Including Drain Pin: 35mm,
Bowl Nut Hole Diameter: 8.5mm,
HELPFUL HINT: IF YOU ALSO REQUIRE THE LARGE UPPER FLOAT BOWL SEAL TO FIT THIS THEN PLEASE CLICK BELOW !
CLICK HERE FOR LARGE UPPER BOWL SEAL !
-
MPN:13950001
-
Brand:Replacement Part
-
Condition:New
-
Product Code:CP056-W2
-
Weight:0.6kg
