Atco, Qualcast, Webb A114 Aluminium 114cc Engine Parts
Atco Commodore, Ensign B12, B14, B17, B20, Qualcast Suffolk Punch 30s, 35s, 43s, Webb Diplomat 300, 350, 450, 450e Cylinder Mowers with A114 114cc Aluminium Engines,

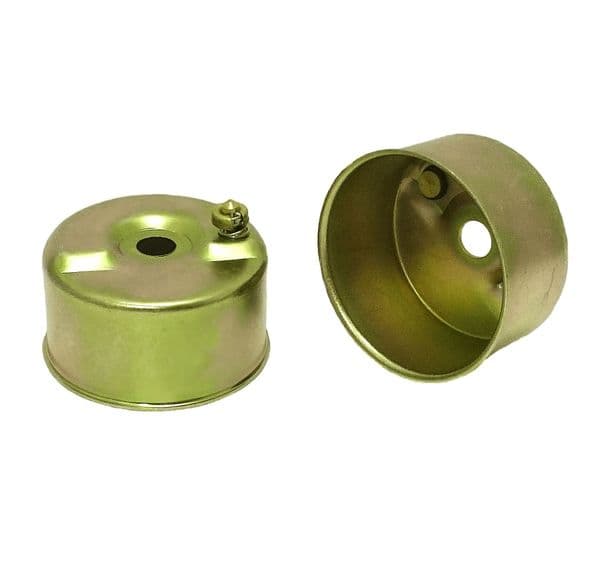

1 x Brand New Top Quality Aftermarket Replacement Carburettor Float Bowl for Dellorto FHC20 11A and FHC20 13A Carburettors,
Replacement for Atco, Qualcast, Webb Part No: Q01108,
This is the type with a sprung fuel drain port incorporated into the base on one side which you simply push up to drain old fuel or water from the bowl when in situ.
Dimensions:
Outer Diameter of Top Rim: 50.7mm,
Outer Diameter of Bowl Section: 48.2mm to 48.4mm,
Inside Diameter of Bowl: 47mm,
Bowl Height Not Including Drain Pin: 27.2mm,
Bowl Height Including Drain Pin: 35mm,
Bowl Nut Hole Diameter: 8.5mm,
1 x Brand New Top Quality Aftermarket Replacement Carburettor Float Bowl for Dellorto FHC20 11A and FHC20 13A Carburettors,
Replacement for Atco, Qualcast, Webb Part No: Q01108,
This is the type with a sprung fuel drain port incorporated into the base on one side which you simply push up to drain old fuel or water from the bowl when in situ.
Dimensions:
Outer Diameter of Top Rim: 50.7mm,
Outer Diameter of Bowl Section: 48.2mm to 48.4mm,
Inside Diameter of Bowl: 47mm,
Bowl Height Not Including Drain Pin: 27.2mm,
Bowl Height Including Drain Pin: 35mm,
Bowl Nut Hole Diameter: 8.5mm,
-
MPN:Q01108
-
Brand:Replacement Part
-
Condition:New
-
Product Code:CP056-W1
-
Weight:0.6kg
